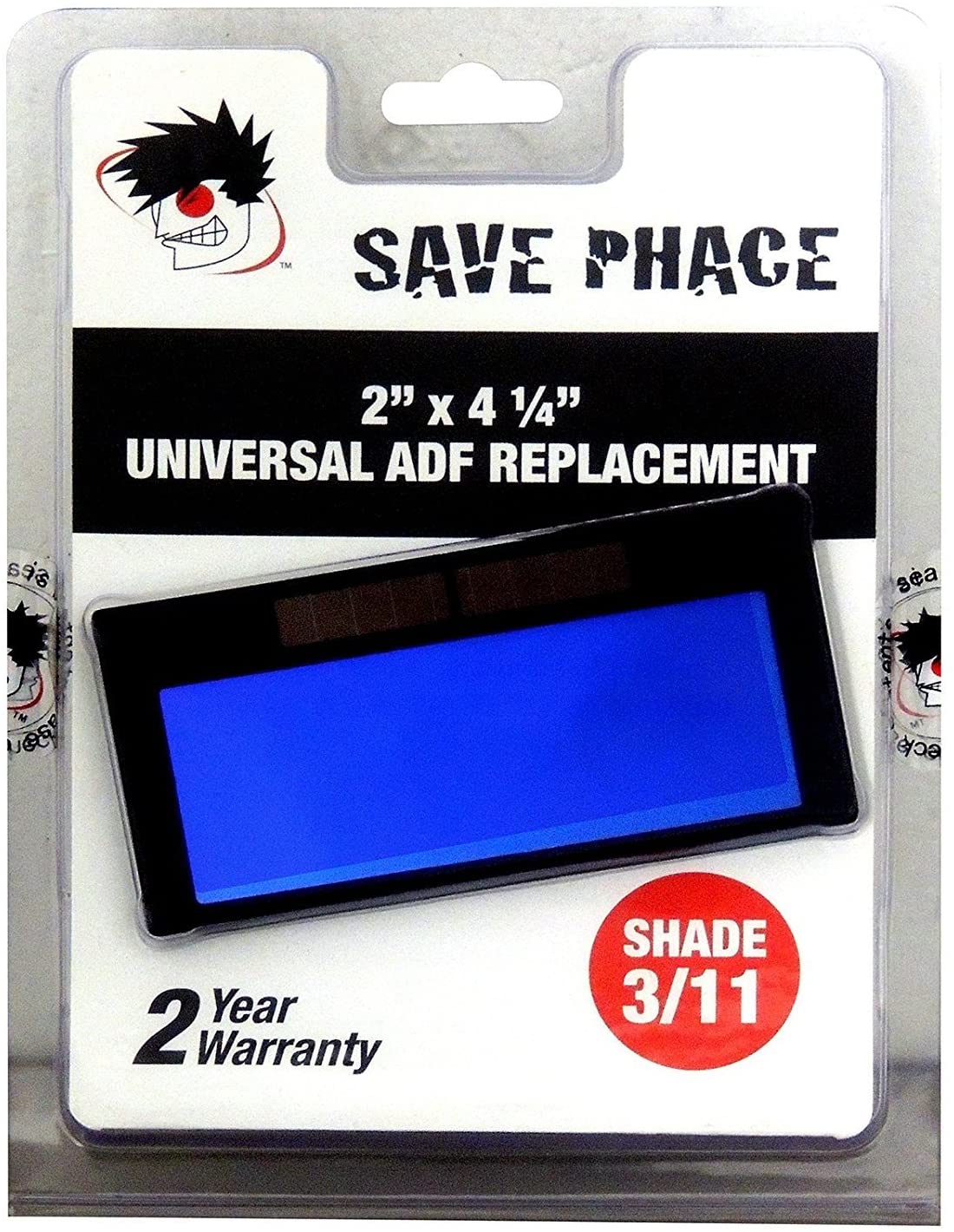

EFP - Lens ADF Filter Repl 3/11 - Gen X

• Save Phace ADF Filter features the advanced optical detection system that monitors the welding process to ensure that your filter remains in the dark state in a wide range of arc-welding applications.
• Protection from harmful ultra-violet / infrared radiation is always present whether in the light or dark state.
• This auto darkening filter is great for SMAC, MIG, TIG and Spot Welding.
• With full automatic to power on or off, it powers solar cells and lithium battery. With the adjustable shading level, it can be set manually from 9 to 13 by turning the dial.

Installation and Removal of ADF:

1. Remove the four finger screws and remove the REAR ADF Holder Plate to the Outer Lens.
2. Take out the old ADF Lens
3. When you replace the clear protective outer ADF Lens cover, squeeze the two tabs on the inside and press outward. The clear protective lens will pop out of the Outer Lens. Gently snap in a new one.
4. Replace the old ADF Filter with a new ADF that matches the ADF Holder Lens Shade as shown on the outside of the ADF Holder Lens.
5. Place the new ADF Filter with the Solar Panels facing the welding arc.
6. Place the rear ADF Holder over the ADF and install finger screws.
7. Do NOT over tighten finger screws.
